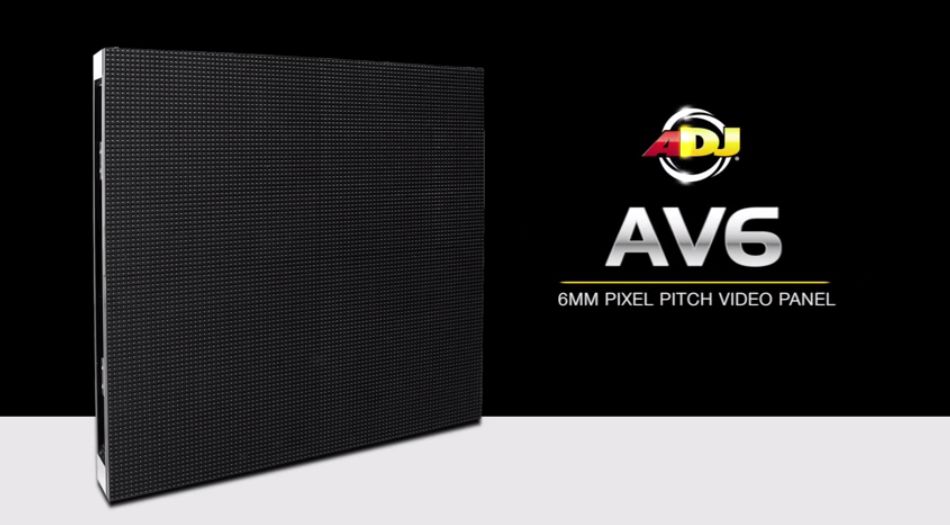

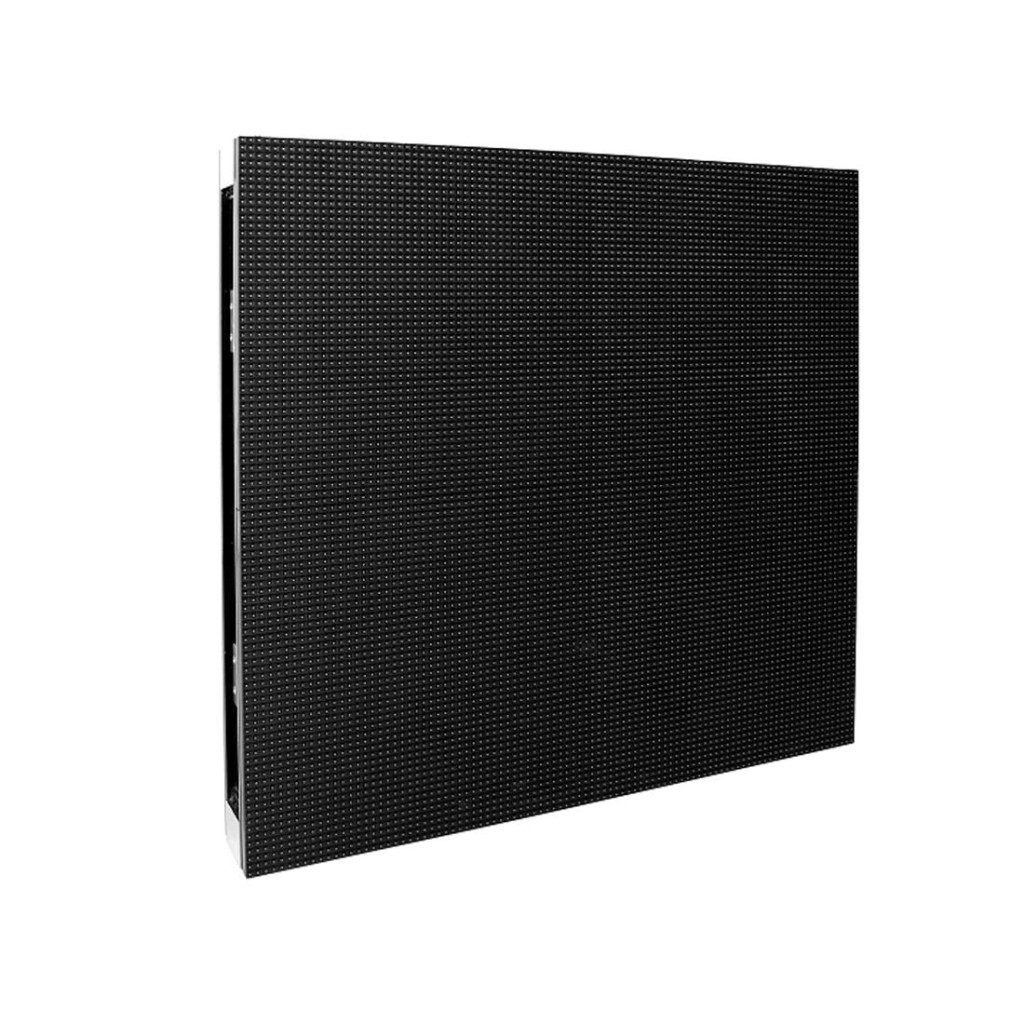

LED ekraani moodul ADJ AV6

 Tehniline info:

• LED valgusallikas: 3-in-1 SMD2121 LED
• piksli tihedus: 96×96; 27,777 / m²
• kaal: 8,15kg
• eredus: 1200 NIT-i
• optimaalne vaatekaugus: 6 meetrit
• ereduse reguleerimine: 0-100% 100 taset
• sisendid: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
• toetatud VGA reziimid: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
• maksimaalne juhtimiskaugus: interneti kaabliga kuni 100m või fiiberoptilise kaabliga kuni 120m

 Edasine info on pärit tootja kodulehelt:

Specifications

– Pixel Pitch: 6.0mm (0.25”)
– LED Configuration: 3-in-1 SMD2121 LED
– Pixel Density: 96×96; 27,777 per square meter
– Size: 576 x 576 x 75mm
– Module Quantity: 4
– Weight: 8.15Kg

 MECHANICAL RATINGS:
– Surface Flatness: Gaps<0.5mm

 OPITCAL RATINGS:
– Brightness: 1200 NITS
– View Angle: Horizontal 140°/Vertical 140°
– Distance: 20ft (6m)
– Gray Scale / Display Color: 14Bit
– Brightness Adjustment: 0~100% 100 Levels
– Processing: 14Bit

 POWER SUPPLY:
– Operation Power: 100~240V 50-60Hz
– Max. Power Consumption: 200W/per panel
– Ave. Power Consumption: 80W/per panel

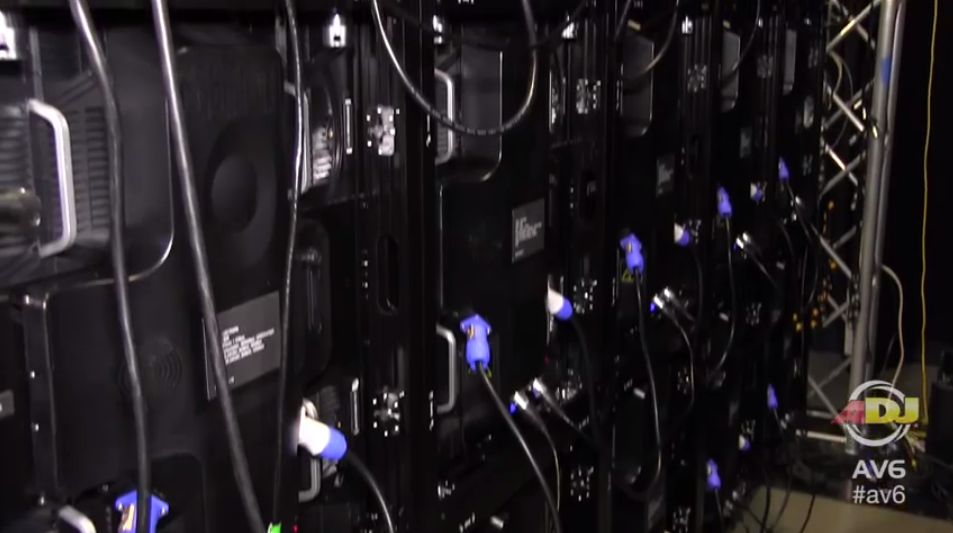

– Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out

 CONTROL SYSTEM:
– Control Mode: Synchronous Display with Control PC by DVI
– Frame Update Frequency: 50-60Hz
– Scan Mode: 1/12 Duty
– Refresh Rate: 960Hz
– Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
– Control Distance: Ethernet Cable <100m or Fiber Optic>120m
– Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
– Brightness Correction: Pixel, Module, Cabinet

 ENVIRONMENTAL:
– Operating Temp / Humidity:  Fahrenheit: -4° + 104° / Celsius: -20° + 40°/
10-90% (No Condensation)
– Operating Life / MTBF: 100,000 Hours / 5,000 Hours
– Protection Level: IP20 (Front and Back)-
– Out of Control Rate: <0.02%
– Listings: CE, FCC Class A, RoHS, China RoHS
