Peamikrofon koos vastuvõtjaga LD Systems U306 BPH

219.60 €
Hind km-ga: Jah Ei
Järelmaks: Al 10.00 € kuus

Korvi lisatud toodetele saab ka paari klikiga küsida nimelise ja ametliku hinnapakkumise, soovi korral koos paigaldusega.

  • Toode on Tartus laos

  • Eeldatav tarne: vahemikus 19.10.2019 ja 21.10.2019

  • Eesti piires on kohaletoimetamine tasuta

LD Systems U306 BPG on Saksamaal disainitud soodne ja hea hinna/kvaliteedi suhtega peamikrofoni komplekt.

Seadme töösagedus on valitav 12 kanali vahel sagedusvahemikus 655 – 679 MHz.

AA patareidega töötava juhtmevaba saatja tööaeg on >10 h.

ASC infrapuna funktsioon võimaldab ühe nupuvajutusega ühildada omavahel saataja ja vastuvõtja.

Esipaneelil on kanali valimiseks ja helitugevuse reguleerimiseks nupud ning signaali vastuvõtuantennid.

Mikrofoni helisignaali vastuvõtja on ühendatav helivõimendusega XLR kaabliga.

Seadme puhul on kasutusel piloottooni funktsioon, mis võimaldab vältida häireid ja aitab tagada puhta signaaliülekande.

Komplektis on peamikrofon, vöösaatja ja vastuvõtja.

Tehniline info:

  • signaali sagedused: 655 – 679MHz
  • kanaleid: 12

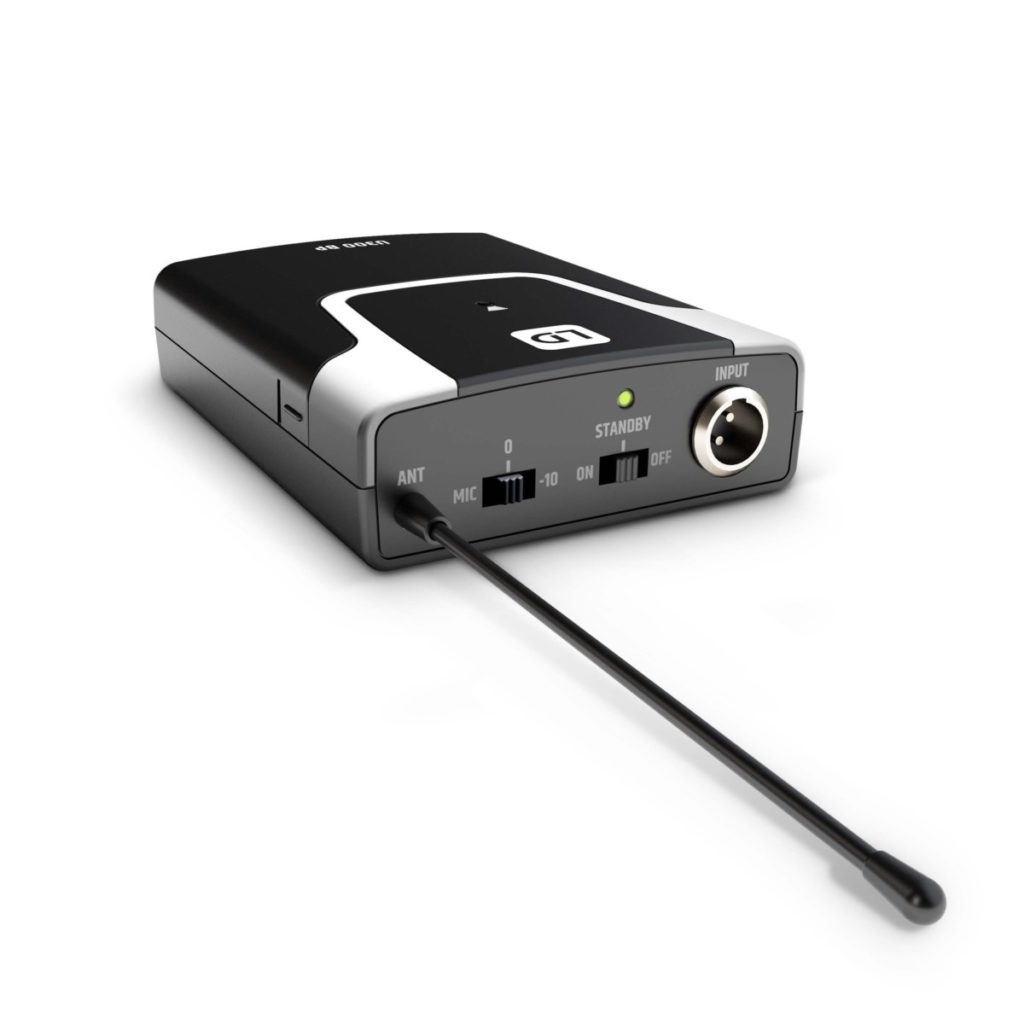

  • vöösaatja sisend: Mini-XLR (3-pin)
  • vastuvõtja väljund: XLR
  • saatja tööaeg > 10 h 2 x AA patareidega

Allpool olevad andmed on tooja kodulehelt.

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 metres in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronisation via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.

Specifications

Product number: LDU306BPH
Product type: Wireless Microphone Systems, Wireless Microphone System Accessories
Type: Receivers, Bodypack, Headsets, Set
Modulation Type: FM
Transmission frequency range: 655 – 679MHz
Frequency response: 25 – 16,000Hz, 20 – 20.000Hz
Channels: 12
Directivity: Cardioid
Groups: 1
Inputs: Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Antenna inputs: 2 x fixed
Nominal impedance: 680Ohm(s)
Rated HF output power: 10 mW
Noise reduction: Squelch
Transmission optimization: Pilot tone
THD: < 0.3 %
Controls: Power On/Off, Channel up, Line/Instrument Level, Power, ASC Sync, Channel down, Gain (3-way switch), volume
Signal-to-noise ratio: 104dB
Phantom power requierements: 5V
Indicators: ASC IR Sync (Green/Amber Blinking LED), 5 LED VU meters, Power LED (Power ON: green), Antenna A/B, Battery (low battery: red), LC display
Audio output, balanced: XLR
Audio output, unbalanced: 6.3 mm jack, switchable unbalanced output level
Operating voltage: 2 x AA battery, 12 V DC – 18 V DC (500 mA), external power supply
Microphone input: Mini-XLR (3-pin, female)
Operating time: > 10 hrs.
Accessories (included): 2 x AA battery, Power supply, Foam windscreen, Audio cable
Width: 65mm, 211mm
Weight: 0,85kg, 0,7kg, 0,085kg, 0,049kg
Max. output level: +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr)dBu
Height: 91mm, 43mm
Depth: 25mm, 120mm
Other features: IR frequency synchronisation, Belt clip, Pilot tone
