Raadiomikrofon koos vastuvõtjaga LD Systems U506 HHC

354.00 €
Hind km-ga: Jah Ei
Järelmaks: Al 10.00 € kuus

Korvi lisatud toodetele saab ka paari klikiga küsida nimelise ja ametliku hinnapakkumise, soovi korral koos paigaldusega.

  • Toode on Tartus laos

  • Eeldatav tarne: vahemikus 21.10.2019 ja 22.10.2019

  • Eesti piires on kohaletoimetamine tasuta

Hea heli, kvaliteetse viimistluse, väga kasutajasõbraliku disaini ja ülevaatlike displeidega profiseeria raadiomikrofon. U500® seeria vokaalimikrofonid on välja arendatud Saksamaal eesmärgiga pakkuda kõrgtasemel helikvaliteeti ja töökindlust mõistliku hinna juures.

Nii mikrofonil kui ka vastuvõtjal on kanali, patareide laetuse ning mikrofoni (või instrumendi) nime näidikuga selged displeid. Displeidel kuvatav nimi on kasutaja poolt menüüs vabalt valitav ja tähthaaval sisestatav – see võimaldab hästi mikrofone üksteisest eristada.

Vastuvõtja ja saatja tööraadius on ligi 100 m ja rohkem. Mikrofoni saatja saatevõimsus on lülitatav 2mW, 10mW ja 30mW vahel võimaldades kasutada kas palju raadiomikofone üheaegselt väiksemas saalis või siis tagada maksimaalne saatekaugus välitingimustes. Mikrofonikapslid on vahetatavad.

Seadmetel on ka automaatne vaba sageduse leidmise funktsioon ja sageduste sünkroniseerimise funktsioon mikrofoni ja vastuvõtja vahel. Pakume tavajuhul neid seadmeid töösagedusega 655 – 679 MHz. See võimaldab suure leviala ning segajaid on vähem kui 800 ja 900 MHz vahel.

Terve Eesti piires kohaletoomine tasuta.



Allpool olev info on pärit tootja kodulehelt:

Kasutaja manuaal: PDF

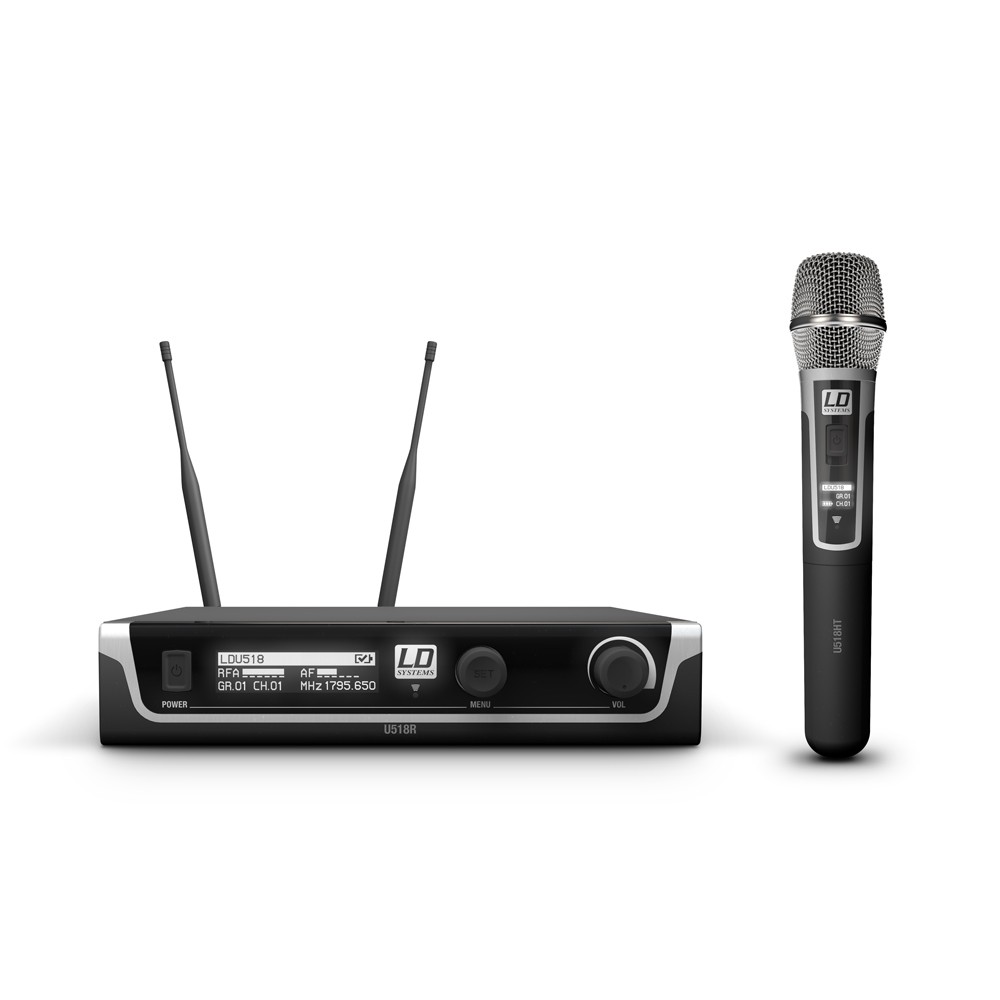

U518 HHCWIRELESS MICROPHONE SYSTEM WITH CONDENSER HANDHELD MICROPHONE

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 – 608 MHz and 655 – 679 MHz, where 12 systems can be operated simultaneously, and 823 – 832 MHz + 863 – 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

  • U505 // 584 – 608 MHz // 12 systems can be used simultaneously
  • U506 // 655 – 679 MHz // 12 systems can be used simultaneously
  • U508 // 823 – 832 MHz + 863 – 865 MHz // six systems can be used simultaneously
  • U506 UK (Channel 38) // 606 – 614 MHz //
  • U518 // 1785 – 1800 MHz //

Specifications:

Product type Wireless Microphone Systems

Type Handhelds
Transmission frequency range 655 – 679 MHz
Weight 2,7 kg

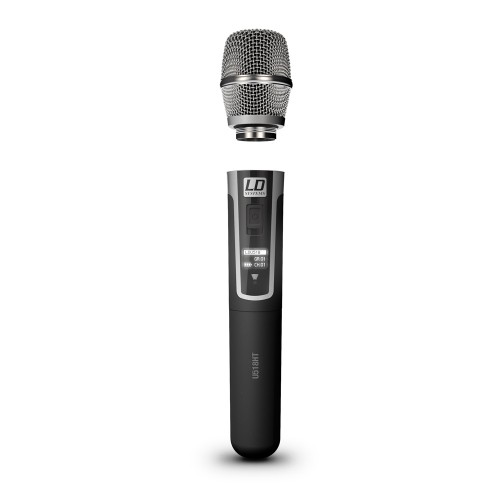

LDU518MC – LD Systems U518 MC Condenser handheld microphone

Product type switchable gain
Type Microphones
Microphone type condenser
Directivity cardioid
Frequency response 60 – 16000 Hz
Signal-to-noise ratio >95 dB
Rated HF output power Variable (10, 30, 50 mW)
Controls select
Operating voltage 2 x AA battery
Operating time >10 h (with alkaline batteries)
Length 257 mm
Diameter 50 mm
Weight 0,25 kg

LDU518R – LD Systems U518 R Receiver

Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Channels 96 (8 groups of 12 channels)
Groups 8
Antenna inputs 2
Antenna connector BNC
Frequency response 30 – 16000 Hz
Noise reduction squelch
Signal-to-noise ratio > 100 dB
THD < 0.1 %
Controls volume
Audio output, balanced XLR
Audio output, unbalanced 6.3 mm jack
Operating voltage 12 – 18 V DC
Max. output level +10 dBu
Weight 0,85 kg
Indicators OLED Display
Operating voltage 12 V DC, 500 mA
Width 212 mm
Height 44 mm
Depth 159 mm
Accessories (included) Power cord
